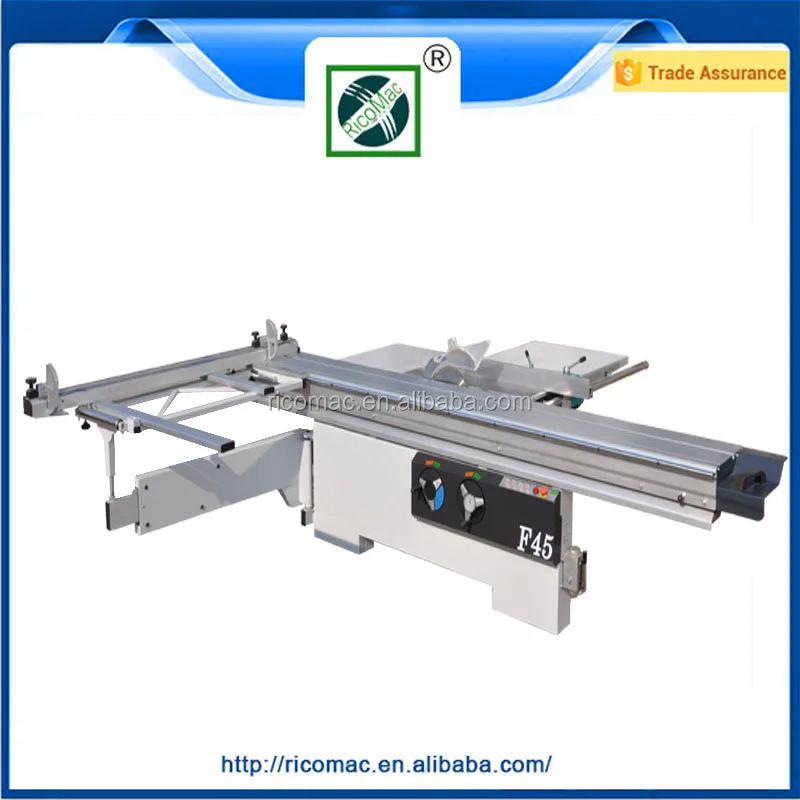

F45 Precise Panel Saw with Sliding Table

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Table Panel Saw
Use:
Woodworking
Style:
Horizontal
Place of Origin:
Shandong, China (Mainland)
Brand Name:
RICO
Model Number:
F45
Usage:
wood cutting and sawing
Voltage:
380V,220V, 50/60HZ
Power(W):
5.5kw
Dimension(L*W*H):
3400*3300*900mm
Weight:
750kgs
Certification:
ISO9001
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
green, white or customized
OEM service:
is available
warranty:
one year
customer label:
acceptable
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
F45 Precise Panel Saw with Sliding Table Package:Plywood Case,
Packing size:2130x1100x1000mm,3250x420x250mm
Packing Qty: 2pc
Port
Qingdao, Ningbo, Shanghai, Guangzhou
Lead Time :
one year

F45 Precise Panel Saw with Sliding Table



Product Description

 Main Data:

Double column rail with rolling wheel
New-designed anti-dust cover
Max. adjustable angle of main saw blade: 45º

Max.planning length is 3200mm

Advantage:

1. Movable table guide track is chrome plated round stick.Plating chromium steel balls structure with high rating accuracy, exact and durable. Guide track is optional.

2. Made of high-strength extruded aluminum alloy, movable table is high in strength and will not bend.

3. With oxidation treatment, movable table surface is beautiful and hardwearing.

4. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.

5. The saw axis is equipped after two dynamic balances so it is much more life-saving.

6. High precision and can reach 0.005mm. And the cutting surface is smoother without jagged.

7. The machine base is Gantry-milled, in order to improve the stability of the sliding table.

8. Our special saw blade has 96 saw teeth. So it can cutting panel smoother.

9. The electrical devices are sealed so it is durable and is not easy to damage.

Specification:

Model

F45

Max.working length

3200mm

Max.working thickness

80mm

Main saw blade size

305*30mm

Scoring saw blade size

100*20mm

Main saw spindle speed

4000/5000rpm

Scoring saw spindle speed

8800rpm

blade saw tilt angle

45 degree

Main saw motor power

5.5kw

Scoring saw motor power

0.75kw

Overall dimensions

3400x3300x900mm

Net weight

750kgs



Packaging & Shipping

 Packing:Plywood case

               Package size:2130x1100x1000mm/3250x420x250mm

               Package Qty:Two PKGS

Shipping:

Designated forwarder is accepted.

Shipping departure from Qingdao/Shnghai/Ningbo/Guangzhou.

Ex-works,FOB,C&F,CIF terms

Our Services

Guarantee&Aftersales service:

1.Guarantee for one year,spare parts can be change within this time, but for normal wear not human error damage

2.24 hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.As the improvement of the products, any change of the machines and parts should not be advised separately.



Pls send us the qty/model/size of the edge banding machine, we will contact with you within 24hours.Any problem pls let us know asap,we will carefully and committed to serve you!
