Quick Details

  • Condition: New
  • Type: Edge Banding Machine
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: RICO
  • Model Number: MFB245
  • Voltage: 380V/220V
  • Power(W): 3.22KW
  • Dimension(L*W*H): 2400*800*1230mm
  • Weight: 430KGS
  • Warranty: one year
  • type: wood edge banding machine
  • style: light duty

Packaging & Delivery

Packaging Details automatic wood edge banding machine package:Plywood case.
Packing size:2020*850*1300mm
Packing quantity:one piece
Delivery Time 30days after order

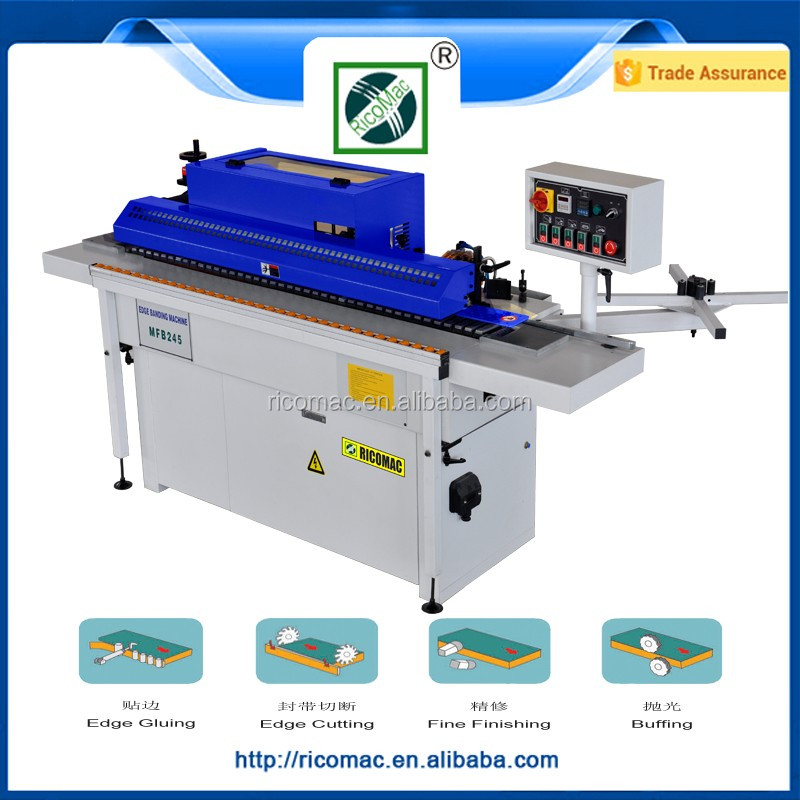

Automatic wood edge banding machine



Product Description

Description:

1. automatic edge banding machine, with functions of  edge pasting, end trimming, fine finishing and buffing.

2. low-voltage control circuit, more safe and easy control( with PLC system as optional )
3. button control panel overhead, conventional motor for edge fine finishing,double motors for buffing.

4.use press rollers and crawler type sprocket instead of normal conveyor to make machine with more power to push big board go head.
5. extendable table shelf for big panels.

6. Machine color can be customized.



Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding. Thicker edgebanding requires a slight concavity to provide a tight glue line. The thickness can vary from .018" to 5mm or even more. Edgebanding can be applied to the substrate by using hot melt adhesives. Hot melt adhesives can be water or solvent based and they can consists of different raw materials (EVA, PUR, PA, APOA, PO). The machine that applies the edgebanding is called edgebander. An edgebander bonds the edgebanding to the substrate, trims leading and trailing edge, trims top and bottom flush, scraps any surplus and buffs the edge.



 Function:

ITEM/MODEL

    MFB245

Panel length

Min.100mm(PVC)

Panel width

Min.90mm

Panel thickness

10-45mm

Edge width

12-48mm

Edge thickness

0.4-3mm

Feeding speed

6m/min

In-put voltage

380V

In-put frequency

50Hz

Out-put frequency

200Hz

Total Power consumption

3.22kw

Required air pressure

0.7Mpa

Net weight

430kg

Overall dimension(L*W*H)

2400*800*1230mm





Packaging & Shipping

Packaging:Plywood case package for FCL AND LCL

Shipping:Qingdao,Ningbo,Shanghai,Guangzhou port.

Trade term:FOB,C&F,CIF

Related Products



Company Information

Introduction of Company

Weihai Rico Machinery Co., Ltd.

1. With more than 20 years experiences in the filed of woodworking machinery manufacturing.

2. Gold Membership of Alibaba since the year of 2011, Trust Approved Supplierand granted Trade Assurance over Alibaba Authority.

3. Fast delivery, 30 working days/40ft container load.

4. OEMavailable and Customized Service available.

5. Products Development Engineers Team, 6 R&D Technicians, 5 QC management system guaranteed.

6. Factory building 2000m2, ISO9001 certified workshop.

7. Main Products:

Edge Banding Machine, Automatic Edge Bander, Woodworking Precision Panel Saw, Multiple Boring Machine, Surface Planer, Jointer, Thickness Planer, Double Surface Planer, Woodworking Band Saw, Woodworking Versatile Machine, Spindle Molder, Mortiser, Radial Arm Saw, Etc.

                                                                                                                              >>>More Info

Our Services

Guarantee&Aftersales service:

1.Guarantee for one year,spare parts can be change within this time, but for normal wear not human error damage

2.24 hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.As the improvement of the products, any change of the machines and parts should not be advised separately.

Pls send us the qty/model/size of the edge banding machine, we will contact with you within 24hours.Any problem pls let us know asap,we will carefully and committed to serve you!
